| Brand Name : | Huaxin or OEM |
| Model Number : | Outdoor Fiber Optic Cable GYTY53 |
| Certification : | CE,TLC,ISO9001 |
| Price : | 2000 - 9999 meters $0.55 |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 500km PER DAY |
| Delivery Time : | 7-14work days |
GYTY53 Double Sheath Steel Tape Armor Direct-Burial/ Duct/ Aerial Armored Fiber Optical Cable Fiber Optic Cables

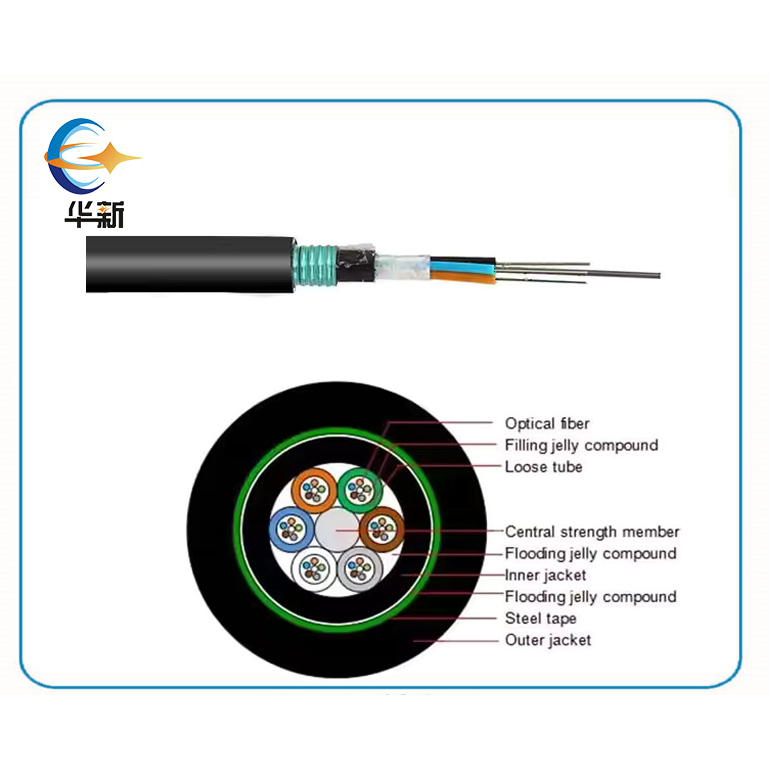

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the metallic strength member to form the cable core. Then the cable core is filled with water-blocking compound and covered with a PE inner jacket. After the corrugated steel tape (CST) is longitudinally armored over the inner jacket, the cable is completed with a PE outer jacket.
• Good mechanical and thermal performance
• Steel wire as the central strength member
• Hydrolysis resistant loose tube
• Tube filling gel ensures critical protection of fiber
• Stranded compact structure eliminating contraction of tubes
• Rugged, durable PE jacket protects against UV radiation, fungus etc.
• Crush resistance and flexibility
• Water-blocking measures :
- Loose tube gel-filled
- 100% cable filling compound
- Corrugated steel tape (CST) enhancing moisture-proof
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
| Max.fiber counts per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Units(Tubes or Fillers) | 6 | 6 | 5 | 6 | 8 | 10 | 12 | 18 | 24 |
| Cable Diameter(mm) | 12.1 | 12.1 | 12.4 | 12.6 | 14.0 | 15.4 | 16.6 | 16.8 | 18.7 |
| Weight(Kg/km) | 153 | 153 | 156 | 167 | 202 | 234 | 267 | 271 | 333 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
| Tensile Strength(N) | Long/Short Term:1000/3000 | ||||||||
| Crush Resistance(N/100mm) | Long/Short Term:1000/3000 | ||||||||
| Bending Radius(mm) | Static/Dynamic:12.5D/25D | ||||||||
| Temperature(ºC) | Storage /Operation:-40ºC~70ºC | ||||||||
Packing and Transportation
Cable in stock, ship same day.
1 or 2km for a wooden roll.
One roll packed with carton.
Other length is also avaiable without MOQ.
|
|
