    2~12 Core aerial Fiber Optic Cable Outdoor Armored Loose Tube Figure 8 Gyxtc8s

    Ask Lasest Price
    Brand Name : Huaxin or OEM
    Model Number : Outdoor Fiber Optical Aerial GYXTC8S
    Price : 2000 - 9999 meters $1
    Payment Terms : L/C,T/T
    Supply Ability : 500km PER DAY
    Delivery Time : 7-14work days
    • Product Details
    • Company Profile

    2~12 Core aerial Fiber Optic Cable Outdoor Armored Loose Tube Figure 8 Gyxtc8s

    2~12 Core Aerial Fiber Optic Factory Supply Outdoor Armored Loose Tube Figure 8 Gyxtc8s Fiber Optic Cable

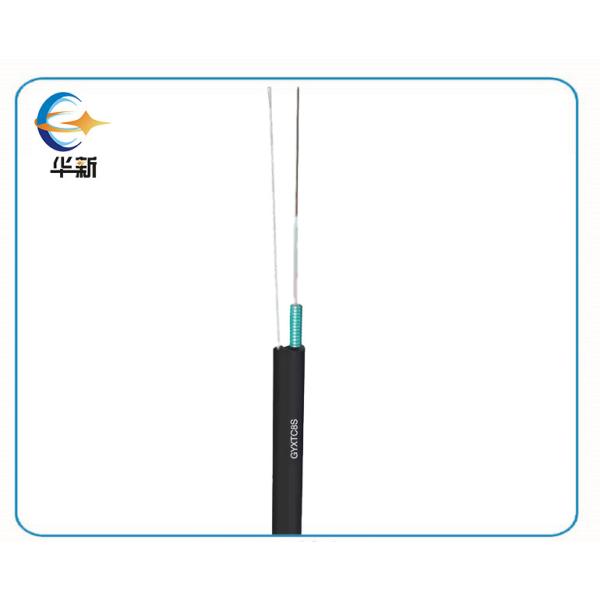

    The structure of the GYXTC8S cable consists of a 250 μm optical fiber encased in a loose tube made of high-modulus material, which is filled with a waterproofing compound. The loose tube is wrapped with a layer of double-sided plastic coated steel tape (PSP) longitudinally, and water-resistant material is added between the steel tape and the loose tube to ensure the compactness of the fiber optic cable and the longitudinal water-resistance, and the steel wire strand is integrated into a figure-of-eight polyethylene sheath.


    Basic Info.

    Model NO.
    GYXTC8S Fiber Optic Cable
    Brand
    Huaxin
    Fiber Count
    2 ~12
    Sheath
    PE
    Tube
    Standed Loose Tube
    Cable Height (mm)
    12.5+/0.8
    Environment
    Aerial
    Operating Temperature (ºC)
    -40~+60
    Transport Package
    305m Per Reel, Carton External.
    Specification
    CE, ISO9001
    Trademark
    Huaxin or OEM
    Origin
    Shandong, Zibo
    Production Capacity
    500 Kilometer Per Day

    Characterstic

    Low insertion loss, high return loss.
    Excellent mechanical endurance.
    High credibility and stability.
    Good in repeatability and exchangeability.
    100% Insertion, Return Lossz End Face and Interference inspection.


    Features
    It controls the extra length of the optical fiber precisely to ensure the goodperformance of stretch-proof and environmental characteristic of the opticalcable.
    The double side plastic-plated steel tape provides an excellent of moisture proofand side compression resistance.
    The Zn-plated steel stranded wire ensures the anti-stretch intensity, which isrequired by the self-supporting cable installation.
    The cable is application the self-supporting aerial wiring with the span of 100m or below. It provides a more efficient construction, and saves the hanging linesand cable drop hangers at the same time.


    Product Performance

    Fiber count2~12
    Loose tube diameter (mm)2.5/1.8+/0.05
    Steel wire diameter (mm)Depends on tensile strength
    Cable height (mm)12.5+/0.8
    Tensile strength (N)According to demand of design
    Crush Resistance (N/100MM)Long term300
    Short term1000
    Bending Radius (MM)Dynamic≥20 * Cable diameter
    Static≥10 * Cable diameter
    Operating Temperature (ºC)-40~+60
    ApplicationAerial

    Technical Parameters


    Model

    Fiber Count

    Steel wire Diameter

    (mm)

    Weight

    (kg/km)

    Tensile Strength

    Long /Short term

    N


    Crush

    Resistance

    N/100mm


    Bending Radius

    Static/ Dynamic

    mm


    GYXTC-8Y-2

    4

    1.6

    47

    400/1000

    1000/2000

    10D/20D

    GYXTC-8Y-6

    6

    1.6

    47

    400/1000

    1000/2000

    10D/20D

    GYXTC-8Y-8

    8

    1.6

    47

    400/1000

    1000/2000

    10D/20D

    GYXTC-8Y-12

    12

    1.6

    47

    400/1000

    1000/2000

    10D/20D

    Packaging & Delivery


    Package Size
    80.00cm * 80.00cm * 80.00cm
    Package Gross Weight
    200.000kg

    Cable in stock, ship same day.

    1 or 2km for a wooden roll.

    One roll packed with carton.

    Other length is also avaiable without MOQ.


    Factory & Production


    Certifications


    Exhibitions


    FAQ
    1. Are you real manufacturer?
    Yes, our factory is located in Shandong, China,
    2. Can you provide the samples?
    Yes, Samples free of charge, but freight necessary to bear yourself.
    3. What is the delivery time?
    It takes 3-5 days for the samples, 7-15 days for the
    bulk production. It depends on the order quantity.

    4. Can you supply customized products and logo? (OEM/ODM)
    Yes, we can provide the OEM/ODM, please feel free to let us know your requirements.
    5.Do you have warranty for your products?
    Yes,-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands
