30 years old factory,specialized in manufacturing optical drop cables and preconnectorized optical patch cords. one-stop supplier for FTTH solutions.
1 Years
| Ask Lasest Price | |
| Brand Name : | Huaxin or OEM |
| Model Number : | Outdoor Fiber Optic Cable GYTA |
| Certification : | CE, ISO9001 |
| Price : | $300/km |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 500km PER DAY |
| Delivery Time : | 7-14work days |

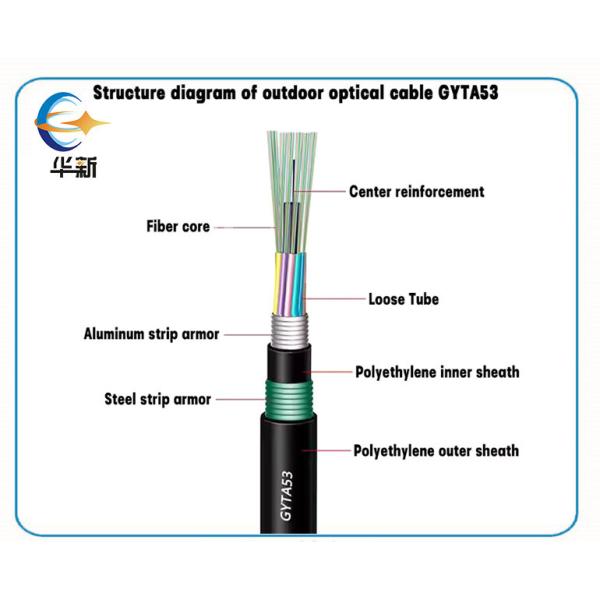

Outdoor Stranded Loose Tube Light Armored Cable GYTA53 Optical Fiber Cable
The 250um bare fibers are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. A steel wire, sometimes sheathed with
polyethylene (PE) for cable with high fiber count, locates in the
center of core as a metallic strength member. Tubes and fillers are
stranded around the strength member into a compact and circular
cable core. An aluminum polyethylene Laminate (APL) is applied over
the cable core, which is filled with the filling compound to
protect it from water ingress. Then the cable is completed with a
PE sheath.
| Cable type | GYTA |
| Optical fiber counts | 2-288 |
| Optical fiber color | Blue,Orange,Green,Brown,Slate,White,Red,Black,Yellow,Violet,Pink,Aqua |
| Fiber Types | Single-mode and Multimode |
| Cable Constructions | S-Z Stranded loose tube |
| Strength Member | Steel wire |
| Sheath Options | Single PE Sheath |
| Armor | Aluminum tape |
| Operating Temperature | -40ºC-70ºC |
| Tensile Strength | Short term 1500N Long term 600N |
| Crush Resistance | Short term 1000N/100mm Long term 300N/100mm |
| Minimum bend radius | Dynamic 20D Static 10D |
Notes:
1.The above parameters are typical value;
2.The cable spec can be designed according to customer's
requirement.
| Quantity (meters) | 1 - 2000 | 2001 - 10000 | > 10000 |
| Lead time (days) | 7 | 14 | To be negotiated |
Packing and Transportation
Cable in stock, ship same day.
1 or 2km for a wooden roll.
One roll packed with carton.
Other length is also avaiable without MOQ.
|
|
