Outdoor Armored Singlemode Fiber Optic Cable with G652D Fiber HDPE Jacket GYXTW with Factory Price

Shandong HUAXIN Communication Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Outdoor Armored Singlemode Fiber Optic Cable with G652D Fiber HDPE Jacket GYXTW with Factory Price from wholesalers

    Buy cheap Outdoor Armored Singlemode Fiber Optic Cable with G652D Fiber HDPE Jacket GYXTW with Factory Price from wholesalers
    • Buy cheap Outdoor Armored Singlemode Fiber Optic Cable with G652D Fiber HDPE Jacket GYXTW with Factory Price from wholesalers

    Outdoor Armored Singlemode Fiber Optic Cable with G652D Fiber HDPE Jacket GYXTW with Factory Price

    Ask Lasest Price
    Brand Name : HUAXIN or OEM
    Model Number : Outdoor Fiber Optical Cable GYXTW
    Price : USD$0.05
    Payment Terms : L/C,T/T
    Supply Ability : 500KM PER DAY
    Delivery Time : 5-14work days
    • Product Details
    • Company Profile

    Outdoor Armored Singlemode Fiber Optic Cable with G652D Fiber HDPE Jacket GYXTW with Factory Price

    Outdoor Armored Singlemode Fiber Optic Cable with G652D Fiber HDPE Jacket GYXTW with Factory Price


    Introducing our high-performance Outdoor Armored Single-mode Fiber Optic Cable with G652D fiber and a rugged HDPE (High-Density Polyethylene) jacket, designed for demanding outdoor environments. This GYXTW-type cable combines superior durability, exceptional transmission quality, and cost-effectiveness, making it an ideal solution for long-distance communication networks.


    Key Features

    • G652D Single-mode Fiber: Ensures low attenuation, high bandwidth, and reliable performance for 1310nm and 1550nm wavelengths, compliant with ITU-T standards. Perfect for telecom, CATV, and high-speed data transmission.

    • Robust Armored Structure: Features a corrugated steel tape armor layer for enhanced protection against mechanical stress, rodent damage, and harsh environmental conditions.

    • Weather-Resistant HDPE Jacket: Provides excellent resistance to UV radiation, moisture, chemicals, and temperature fluctuations (-40°C to +70°C), ensuring long-term reliability in outdoor installations.

    • Lightweight & Flexible Design: Easy to deploy in aerial, duct, or direct burial applications, reducing installation time and costs.

    • Central Loose Tube Structure: Optimizes fiber protection and stability, minimizing signal loss even under tension or bending.

    Applications:
    Ideal for backbone networks, FTTH (Fiber-to-the-Home), metropolitan networks, industrial communication systems, and surveillance projects requiring secure, high-speed connectivity.


    Factory Direct Pricing:


    We offer competitive factory prices with bulk order discounts, ensuring cost savings without compromising quality. Custom lengths, fiber counts, and packaging options are available to meet your project requirements.

    Choose this armored fiber optic cable for a perfect blend of resilience, performance, and affordability in outdoor infrastructure deployments!


    This description highlights technical specifications, durability, applications, and pricing advantages while maintaining a professional tone suitable for technical buyers or procurement teams.

    Basic Info.


    Model NO.
    GYXTW
    Connection Structure
    Fiber Optic
    Material Shape
    Round Wire
    Allowed Lateral Pressure
    >1000(N/100mm)
    Allowed Tensile Strength
    >10000N
    Core
    Multicore
    Certification
    CE, ISO9001, SGS
    Brand
    Huaxin or OEM
    Sheath Material
    PE
    Fiber Cores
    2~24 Cores
    Structure
    Central Loose Tube
    Customize
    Yes
    Diameter
    6.0mm/7.0mm/8.0mm/9.0mm
    Transport Package
    Wooden Wheel
    Specification
    3KM/Coil
    Trademark
    Huaxin
    Origin
    China
    HS Code
    8544700000
    Production Capacity
    500km/day


    Outdoor Armored Singlemode Fiber Optic Cable with G652D fiber HDPE Jacket GYXTW

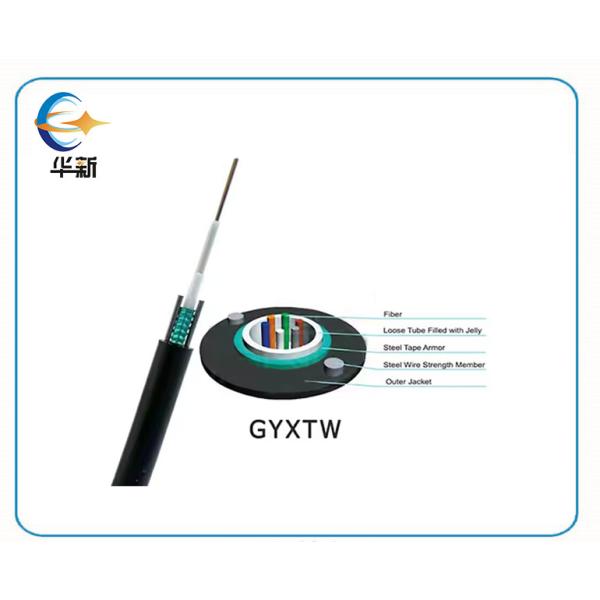

    The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

    Optical Characteristics


    G.652G.65550/125μm62.5/125μm
    Attenuation (+20ºC)@850nm≤3.0 dB/km≤3.0 dB/km
    @1300nm≤1.0 dB/km≤1.0 dB/km
    @1310nm≤0.36 dB/km≤0.40 dB/km
    @1550nm≤0.22 dB/km≤0.23dB/km
    Bandwidth (Class A)@850nm≥500 MHz·km≥200 MHz·km
    @1300nm≥1000 MHz·km≥600 MHz·km
    Numerical Aperture0.200±0.015NA0.275±0.015NA
    Cable Cut-off Wavelength≤1260nm≤1480nm
    Storage/Operating temperature-40ºC ~+70ºC

    Technical Parameters


    ModelFiber CountOuter Diameter (mm)

    Weight

    (kg/km)

    Tensile Strength

    Long/Short term

    N


    Crush

    Resistance

    N/100mm


    Bending Radius

    Static/ Dynamic

    mm


    GYXTW-448.095600/1500300/100010D/20D
    GYXTW-668.01051000/30001000/300010D/20D
    GYXTW-888.01321000/30001000/300010D/20D
    GYXTW-12128.01481000/30001000/300010D/20D

    Packing and Transportation

    Cable in stock, ship same day.

    1 or 2km for a wooden roll.

    One roll packed with carton.

    Other length is also avaiable without MOQ.

    Factory & Production

    Certifications


    Exhibitions



    FAQ

    1. Does this fiber support outdoor use?

      We offer both indoor and outdoor types of fiber optic products. The outdoor optical fiber is armored design with waterproof and UV protection, which is suitable for outdoor environment.

    2. Can the length of optical fiber be customized?

      Yes, we support customization service and can provide specific length of fiber optic products according to your requirements.

    3. Is the packaging of the product safe?

      We use high-strength anti-shock packaging with anti-static foam or bubble wrap inside to make sure the products are not damaged during transportation.

    4. Do you support bulk purchase?

      Yes, we support bulk purchase and offer preferential price and customized service. Please contact our sales team for a detailed quotation.
