    GYFTY All Dielectric Outdoor Communication Duct Installation Fiber Optic Cable Outdoor Non-Metallic Strength Member Loose Tube Optical Fiber Cable

    Ask Lasest Price
    Brand Name : HUAXIN or OEM
    Model Number : GYFTY All Dielectric Outdoor Communication Duct Installation Fiber Optic Cable
    Price : 2000 - 9999 meters $0.20
    Payment Terms : L/C,T/T
    Supply Ability : 500km PER DAY
    Delivery Time : 7-14work days
    • Product Details
    • Company Profile

    GYFTY All Dielectric Outdoor Communication Duct Installation Fiber Optic Cable Outdoor Non-Metallic Strength Member Loose Tube Optical Fiber Cable

    GYFTY All Dielectric Outdoor Communication Duct Installation Fiber Optic Cable Outdoor Non-Metallic Strength Member Loose Tube Optical Fiber Cable

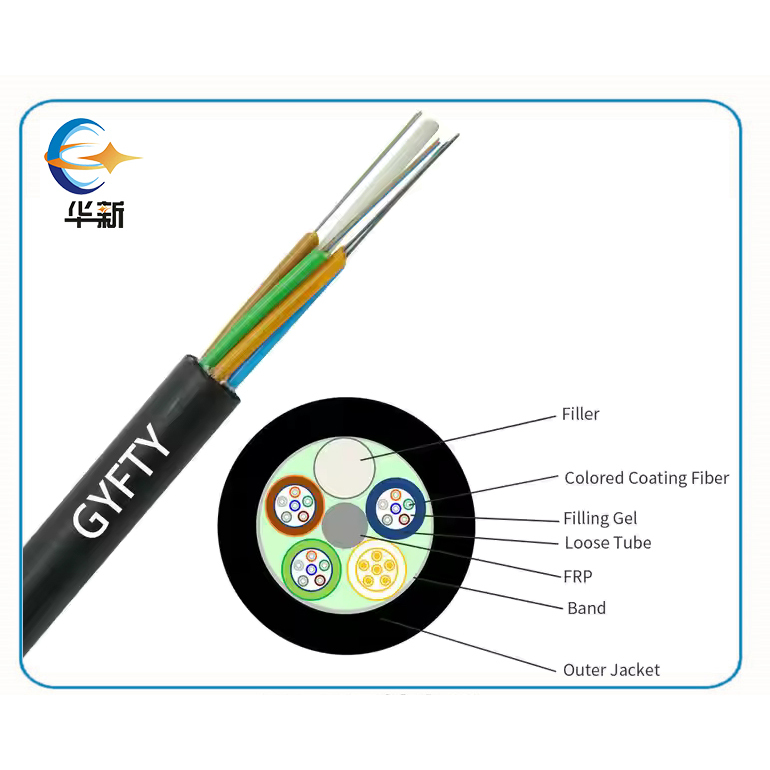

    The GYFTY fiber optic cable is engineered for outdoor duct installations where non-metallic, lightweight, and corrosion-resistant solutions are essential. Built with an all-dielectric design, this cable eliminates electromagnetic interference (EMI) risks and lightning strike hazards, making it ideal for environments requiring enhanced safety and durability. Its loose tube structure and high-strength FRP (Fiberglass Reinforced Plastic) reinforcement ensure reliable performance in harsh outdoor conditions.


    Basic Info.

    Model NO.
    Single Mode
    Material Shape
    Round Wire
    Core
    2~288 Cores
    Certification
    CE,TLC,ISO9001
    Brand
    Huaxin or OEM
    Sheath Material
    PE
    Fiber Quantity
    2~288 Cores
    Operating Temperature (° C)
    -20~ + 60
    Outer Jacket
    PE
    Cable Structure
    Loose Tube
    Transport Package
    Wooden Drum
    Trademark
    Huaxin or OEM
    Origin
    China
    HS Code
    8544700000
    Production Capacity
    500km/Day

    Packaging & Delivery


    Package Size
    80.00cm * 80.00cm * 80.00cm
    Package Gross Weight
    200.000kg

    Characterstic

    •Low insertion loss, high return loss.
    •Excellent mechanical endurance.
    •High credibility and stability.
    •Good in repeatability and exchangeability.
    •100% Insertion, Return Lossz End Face and Interference inspection.

    Feature
    •Can be installed without shutting off the power
    •Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back props
    •Large span length and the largest span is over 1000m
    •Good performance of tensile strength and temperature
    •Long span life, over 30 years



    Technical Parameters

    Model

    Fiber Count

    Tube

    Weight

    (kg/km)

    Tensile Strength

    Long /Short term

    N

    Crush

    Resistance

    N/100mm

    Bending Radius

    Static/ Dynamic

    mm

    GYFTY-2~36F

    2~36

    6

    88

    600/1500

    300/1000

    10D/20D

    GYFTY-38~72F

    38~72

    6

    112

    600/1500

    300/1000

    10D/20D

    GYFTY-74~96F

    74~96

    8

    155

    600/1500

    300/1000

    10D/20D

    GYFTY-98~120F

    98~120

    10

    185

    600/1500

    300/1000

    10D/20D


    Lead time

    Quantity (meters)1 - 20002001 - 10000> 10000
    Lead time (days)714To be negotiated


    Packing and Transportation

    Cable in stock, ship same day.

    1 or 2km for a wooden roll.

    One roll packed with carton.

    Other length is also avaiable without MOQ.

    Factory & Production


    Certifications



    Exhibitions



    FAQ
    1. Are you real manufacturer?
    Yes, our factory is located in Shandong, China,

    2. Can you provide the samples?
    Yes, Samples free of charge, but freight necessary to bear yourself.

    3. What is the delivery time?
    It takes 3-5 days for the samples, 7-15 days for the
    bulk production. It depends on the order quantity.


    4. Can you supply customized products and logo? (OEM/ODM)
    Yes, we can provide the OEM/ODM, please feel free to let us know your requirements.

    5.Do you have warranty for your products?
    Yes,-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands
