Multi Core Double Sheath PVC Jacket Armored Fiber Optic Cable Kevlar

Ask Lasest Price
Brand Name :	HUAXIN or OEM
Model Number :	Indoor Optical Cable GJFJV
Price :	$0.03-$0.05
Payment Terms :	L/C,T/T
Supply Ability :	2000KM PER DAY
Delivery Time :	5-30Work Days

Add to Cart

Product Details
Company Profile

Multi Core Double Sheath PVC Jacket Armored Fiber Optic Cable Kevlar

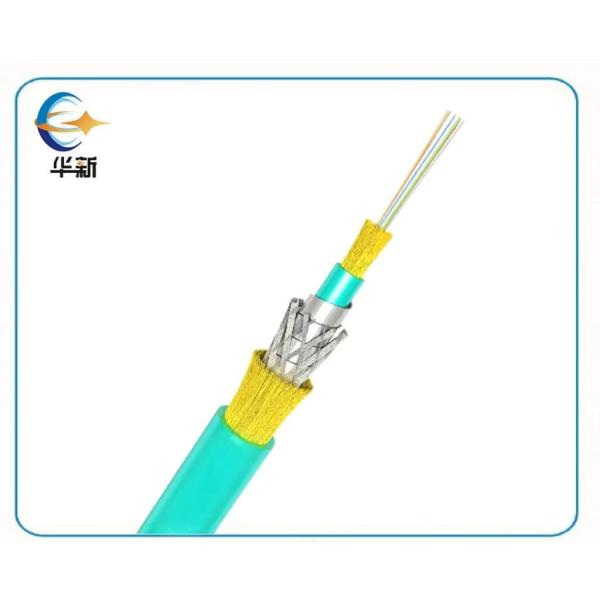

Indoor Optical Cable GJFJV :The structure consists of multi fiber, multi fiber, Φ900μm or Φ600μm tight buffer , spiral steel armor, two layers of Kevlar yarn with double sheath (LSZH/ PVC/ OFNR Jacket)

Product feature

High mechanical strength:
The armored layer significantly enhances the compressive, tensile and impact resistance of the fiber optic cable.
Suitable for occasions requiring high mechanical protection, such as underground pipelines, complex indoor environments, etc.
Resistance to rodent gnawing:
The metal armor layer can effectively prevent rodents (such as rats) from chewing.
Flame retardant performance:
The outer sheath is made of low-smoke, non-halogen (LSZH) material, which is flame retardant, low-smoke and non-toxic, suitable for indoor use.
Anti-electromagnetic interference:
Non-metallic armor layer (such as FRP) can avoid electromagnetic interference, suitable for high electromagnetic interference environment.
Flexibility:
Despite the added armor layer, armored indoor fiber optic cable still maintains a certain degree of flexibility, which is easy for installation and wiring.
Durability:
The armor layer and outer jacket provide additional protection and extend the service life of the fiber optic cable.

Application

Used in Indoor and Outdoor distribution
Used in pigtails and patch cords
Used in optical connections in optical communication equipment rooms and optical distribution frames
Used in optical connections in optical apparatus and equipments

Technical Parameters

Cable construction details:

Technical Parameters
Out Diameter(MM)	2.0	Weight(KG)	15.0
	2.8		18.0
	3.0		18.0
Storage temperature ( °C )		-20+60
Min Bending Radius(mm)	Long term	10D
Min Bending Radius(mm)	Short term	20D
Min allowable Tensile Strength(N)	Long term	300
Min allowable Tensile Strength(N)	Short term	1000
Crush Load (N/100mm)	Long term	500
Crush Load (N/100mm)	short term	1000

Fiber characteristic

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
Condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
Attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
Attenuation		dB/km	0.36/0.23	0 34/0 22	3.0/1.0	-------	-------
Dispresion	1550nm	Ps/(nm*km)	--------	≤18	--------	-------	Dispresion
Dispresion	1625nm	Ps/(nm*km)	--------	≤22	--------	--------
Bandwith	850nm	MHZ.KM	--------	--------	≥400	≥160
Bandwith	1300nm	MHZ.KM	--------	--------	≥800	≥500
Zero dispersion wavelength		nm	1300-1324	≥1320, ≤1322	--------	--------	≥1295, 1320
Zero dispresion slope		nm	≤0.092	≤0.091	--------	--------	--------
PMD Maximum Individual Fibr			≤0.2	≤0.2	--------	--------	≤0.11
PMD Design Link Value		Ps(nm2*km)	≤0.12	≤0.08	--------	--------	--------
Fibre cutoff wavelength λc		nm	≥1180, ≤1330	≥1180, ≤1330	--------	--------	--------
Cable sutoffwavelength λcc		nm	≤1260	≤1260	--------	--------	--------
MFD		um	9.2+/-0.4	9.2+/-0.4	--------	--------	--------
MFD		um	10.4+/-0.8	10.4+/-0.8	--------	--------	--------
NumericalAperture(NA)			--------	--------	0.200+/-0.015	0.275+/-0.015	0.200+/-0.015
Step(mean of bidirectionalmeasurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiberlength and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Dicontinuity
Difference backscattercoefficient	dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity	dB/km	≤0.01	≤0.01
Core dimater	um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter	um	125.0+/-0. 1	125.0+/-0. 1	125.0+/-0. 1	125.0+/-0. 1	125.0+/-0. 1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter	um
Coating/chaffinch concentrically error	um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity	%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error	um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)	um	≤4	≤4

Company Profile

Certification

Exhibition

Packaging and transportation

Adopting high strength corrugated carton, pressure and shock resistant to ensure that the product is not damaged during transportation.
Wrapped with anti-static foam or bubble wrap inside to prevent the fiber optic products from being squeezed or rubbed.
Each fiber optic cable is individually encapsulated to avoid tangling and damage.
We support a variety of transportation methods: express, logistics, air freight, sea freight, etc. to meet the different needs of customers.

FAQ

Can you provide the samples?

Yes,Samples free of charge, but freight necessary to bear yourself.

Does this fiber support outdoor use?

We offer both indoor and outdoor types of fiber optic products. The outdoor optical fiber is armored design with waterproof and UV protection, which is suitable for outdoor environment.

Can the length of optical fiber be customized?

Yes, we support customization service and can provide specific length of fiber optic products according to your requirements.

Is the packaging of the product safe?

We use high-strength anti-shock packaging with anti-static foam or bubble wrap inside to make sure the products are not damaged during transportation.

Do you support bulk purchase?

Yes, we support bulk purchase and offer preferential price and customized service. Please contact our sales team for a detailed quotation.
