30 years old factory,specialized in manufacturing optical drop cables and preconnectorized optical patch cords. one-stop supplier for FTTH solutions.
1 Years
| Ask Lasest Price | |
| Brand Name : | OEM |
| Model Number : | Cassette Type PLC Splitter |
| Certification : | CE ISO |
| Price : | case by case |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 10,000 piece per day |
| Delivery Time : | 5-30days |

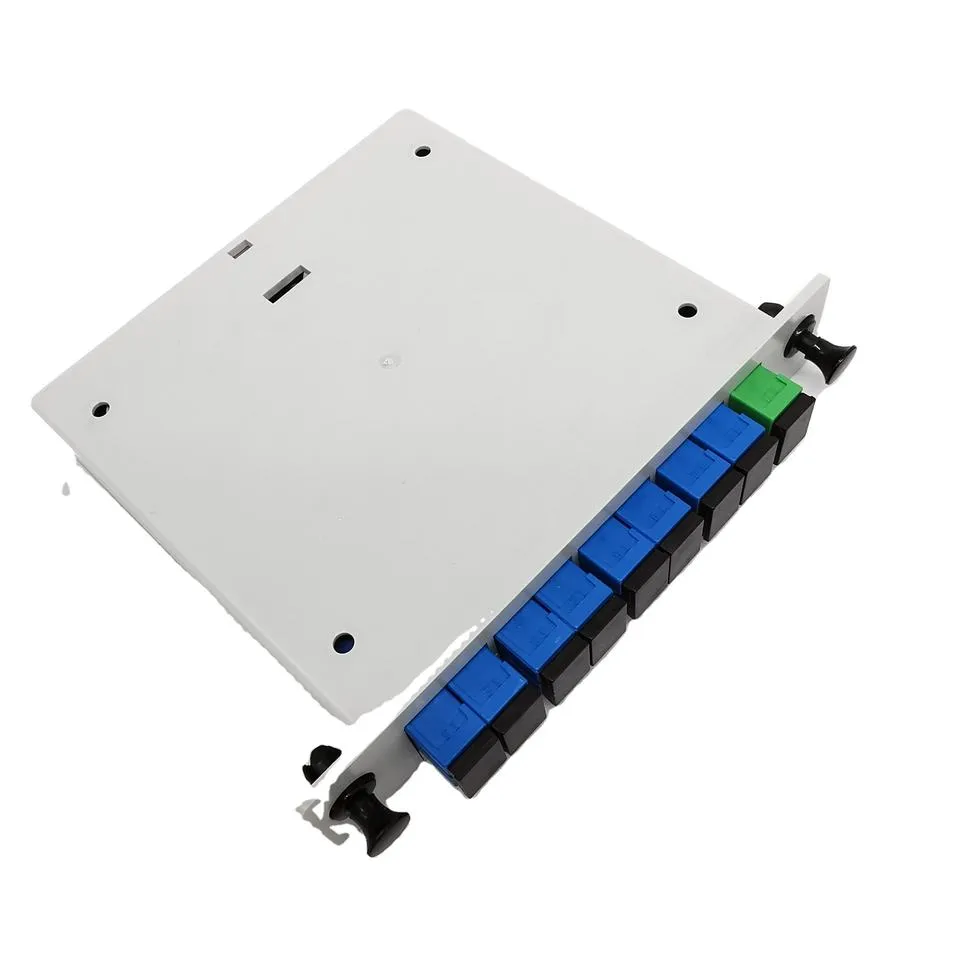

Sc fiber optic cassette splitter card inserting 1X2 1X4 1X8 1X16 1X32 way mini PLC splitters card type box splitter
A PLC (Planar Lightwave Circuit) splitter is a passive optical component used in fiber optic networks to divide a single optical signal into multiple output signals.
SC Splitter Card redefines fiber distribution with its hot-swappable, card-type design, engineered for seamless integration into LGX enclosures or rack-mounted panels. Supporting split ratios from 1×2 to 1×32, this miniaturized PLC splitter delivers scalable signal division for FTTH, 5G fronthaul, and enterprise networks. Its tool-free insertion mechanism and color-coded SC/UPC/APC ports streamline deployments in congested environments like data centers, telecom hubs, and industrial control rooms, reducing setup complexity by 50% compared to fixed splitter solutions.
Mini PLC chips (15mm × 4mm) and space-saving fiber routing enable up to 1×32 splitting within a 1U cassette footprint, maximizing rack efficiency without compromising performance.
Industry-leading insertion loss (1×2: ≤3.6dB; 1×32: ≤17.2dB) via proprietary air-tight alignment technology, ensuring compatibility with 10G/25G/100G PON and coherent DWDM systems.
Reinforced aluminum alloy frame with IP65-rated dust/impact resistance (-40°C to +85°C), certified for outdoor cabinets, factory floors, and vibration-prone rail/aviation systems.
Zero-Touch Maintenance
Front-access, slide-in/out design allows splitter replacement without disrupting adjacent fibers, critical for mission-critical networks requiring <1-minute failover.
Mix-and-match split ratios (1×8 + 1×16 in a single cassette) and dual-wavelength operation (1310/1550nm ±10nm) for multi-service convergence.
| Feature | Specification |
|---|---|
| Split Configurations | 1×2, 1×4, 1×8, 1×16, 1×32 |
| Connector Interface | SC/APC, SC/UPC (angled/straight polish) |
| Insertion Loss | 1×2: ≤3.6dB; 1×32: ≤17.2dB (±0.5dB uniformity) |
| PDL/Return Loss | ≤0.15dB / ≥60dB |
| Fiber Type | G.657.B3 bend-insensitive (2.0mm/3.0mm jacket options) |
| Operating Conditions | -40°C to +85°C, 0–95% RH non-condensing |
| Compliance | IEC 61753, GR-1435-CORE, RoHS/REACH |
Telecom Central Offices: High-density OLT splitter shelves for multi-tenant FTTH rollouts.
Edge Data Centers: Space-optimized optical distribution in micro-modular edge nodes.
Smart Transportation: Redundant signal splitting for tunnel comms and airport runway monitoring.
Military/Critical Infrastructure: EMI-shielded cassettes for secure battlefield or grid networks.
Standard Models: FXC-PLC-1x2-SC, FXC-PLC-1x32-SC (APC/UPC variants)
Add-Ons: Pre-loaded cassettes, snap-on labels, or DIN-rail mounting kits.
Bespoke Solutions: Custom splitter arrays, mixed-density panels, and MIL-SPEC hardening.
APC≥60dB
100% inspection : ISO9001 Quality management system
Packed in cartons or plastic boxes.
Q: What is the brand name of this Fiber Optic Patch Cord product?
A: The brand name of this product is OEM.
Q: What is the model number of this Fiber Optic Patch Cord product?
A: The model number is Single Fiber Or Multi Fiber Single Mode.
Q: Where is this Fiber Optic Patch Cord product manufactured?
A: This product is manufactured in Shandong, China.
Q: What certifications does this Fiber Optic Patch Cord product have?
A: This product is certified with CE and ISO.
Q: What is the minimum order quantity for this Fiber Optic Patch Cord product?
A: The minimum order quantity is 100 pieces.
|
|
