30 years old factory,specialized in manufacturing optical drop cables and preconnectorized optical patch cords. one-stop supplier for FTTH solutions.
1 Years
| Ask Lasest Price | |
| Brand Name : | HUAXIN/ OEM |
| Model Number : | Indoor Fiber Optic Cable GJFPV |
| Certification : | ISO9001,ISO14001,ISO45001,CE |
| Price : | $0.03-$0.1 |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 2000KM PER DAY |
| Delivery Time : | 5-30Work Days |

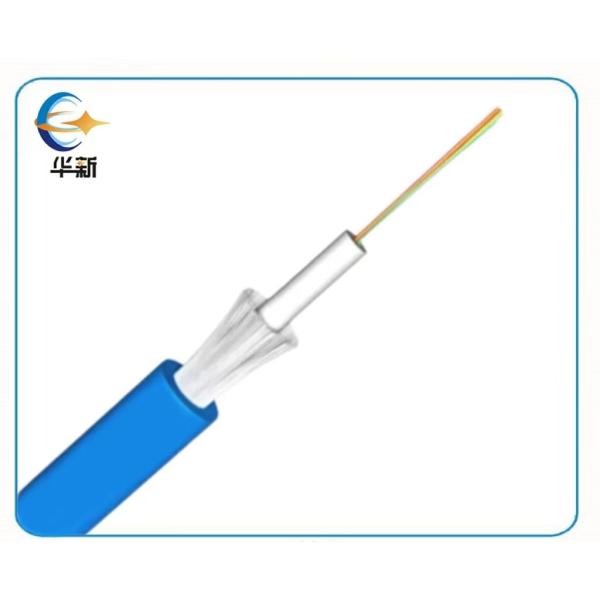

GJFPV Fiber Optic Cable Self-supporting Structure LSZH Jacket Aramid Yarn
The fibers are housed in a loose tube crafted from high modulus plastic, filled with a water-resistant compound. This tube is further enveloped by a layer of water-blocking material to maintain cable compactness and waterp-roofing. Finally, the cable is finished with a LSZH or PVC sheath for additional protection.
| Fiber style | Unit | SM G652 | SM G652D | MM 50/125 | MM 62.5/125 | MM OM3-300 | |
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- | |||
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | ||
| Bandwith | 850nm | MHZ.KM | ---- | ---- | ≧400 | ≧160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | ≧800 | ≧500 | ||
| Zero dispersion wavelength | nm | 1300-1324 | ≧1302, ≤1322 | ---- | ---- | ≧ 1295, ≤1320 | |
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- | |
| PMD Maximum Individual Fibr | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*k m) | ≤0.12 | ≤0.08 | ---- | ---- | ---- | |
| Fibre cutoff wavelength λc | nm | ≧ 1180, ≤1330 | ≧1180, ≤1330 | ---- | ---- | ---- | |
| Cable sutoff wavelength λcc | nm | ≤1260 | ≤1260 | ---- | ---- | ---- | |
| MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | ---- | ---- | ---- |
| 1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | ---- | ---- | ---- | |
| Numerical Aperture(NA) | ---- | ---- | 0.200+/ -0.015 | 0.275+/-0. 015 | 0.200+/-0 .015 | ||
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
We can provide OEM packaging (such as customer LOGO box label), but need to confirm the design in advance.
Yes, we support customization service and can provide specific length of fiber optic products according to your requirements.
We can provide free samples, but the shipping cost is borne by the customer.
All our fiber optic cable products are ISO 9001 certified.
Support T/T (Telegraphic Transfer), L/C (Letter of Credit), 30% deposit, 70% final payment before shipment.
|
|
