GJFJBV Flat Fiber Optic Cable Double Protection Armor Layer Aramid Yarns Single Mode

Ask Lasest Price
Brand Name :	HUAXIN/ OEM
Model Number :	Indoor Fiber Optic Cable GJFJBV duplex cable
Certification :	ISO9001,ISO14001,ISO45001,CE
Price :	$0.03-$0.1
Payment Terms :	L/C,T/T
Supply Ability :	2000KM PER DAY
Delivery Time :	5-30Work Days

Add to Cart

Product Details
Company Profile

GJFJBV Flat Fiber Optic Cable Double Protection Armor Layer Aramid Yarns Single Mode

GJFJBV Fiber Optic Cable Flat Double Protection Armor Layer Aramid Yarns Single Mode

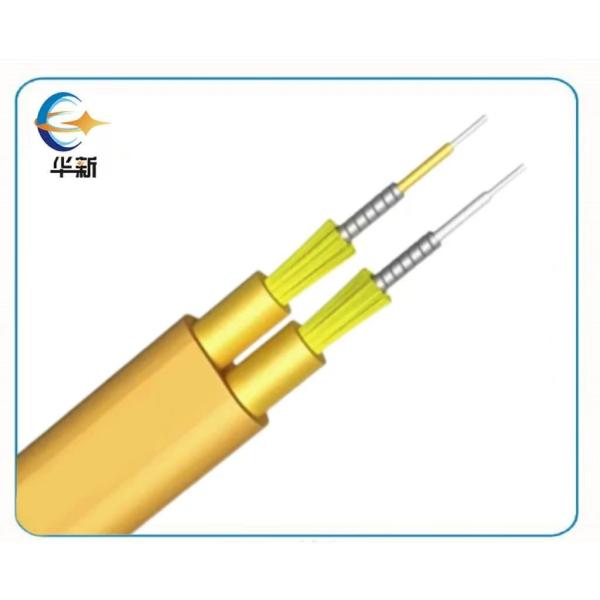

This armored Flat Twin Duplex Indoor Cable utilizes either 900μm or 600μm flame-retardant tight buffer fiber as the optical communication medium. The tight buffer fiber is reinforced with a layer of steel wire and aramid yarn serving as strength member units. This assembly is then extruded with a layer of PVC or LSZH material to act as the inner jacket. The cable is finalized with a layer of flat PVC or LSZH jacket, providing an outer sheath with low smoke, zero halogen, and flame-retardant properties.

Application

Indoor Distribution: Designed for indoor distribution, this cable is well-suited for communication within buildings
Compatibility with Communication Equipment: Tailored to meet the requirements of communication equipment,ensuring suitability and effective service
Pigtail Application: Ideal for use as a pigtail, seamlessly connecting with communication equipment for reliable performance

Characteristic

Flat Twin Configuration with Two Single Fibers: Structured with a flat twin configuration, the cable consists of two single fibers as the basic unit.
0.6 Tight Buffer with Kevlar Yarn and Steel Armored: Each single fiber is equipped with a 0.6 tight buffer, reinforced with Kevlar yarn and steel armor for robust protection.
Flexible or Independent Strength Member in Outer Sheath: The outer sheath of the cable features flexibilityor an independent strength member, providing additional support and adaptability.
Excellent Mechanical and Environmental Performance: Engineered for superior mechanical and environmental performance, the cable is designed to withstand various conditions while maintaining reliable functionality.

Fiber characteristic

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
Dispresion	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	≧400	≧160	Bandwith
Bandwith	1300nm	MHZ.KM	----	----	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302, ≤1322	----	----	≧ 1295, ≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm²*km)	≤0.12	≤0.08	----	----	----
Fibre cutoff wavelength λc		nm	≧ 1180, ≤1330	≧1180, ≤1330	----	----	----
Cable sutoff wavelength λcc		nm	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2+/-0.3	9.2+/-0.3	----	----	----
MFD	1550nm	um	10.4+/-0.5	10.4+/-0.5	----	----	----
Numerical Aperture(NA)			----	----	0.200+/ -0.013	0.275+/-0. 013	0.200+/-0 .013
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Company Profile

Certification

Exhibition

GJFJBV Flat Fiber Optic Cable Double Protection Armor Layer Aramid Yarns Single Mode

Packaging and Transportation

FAQ

Do you accept customized packaging/labels?

We can provide OEM packaging (such as customer LOGO box label), but need to confirm the design in advance.

Can the length of optical fiber be customized?

Yes, we support customization service and can provide specific length of fiber optic products according to your requirements.

Can you provide samples?

We can provide free samples, but the shipping cost is borne by the customer.

Is the quality of your fiber optic cable products guaranteed?

All our fiber optic cable products are ISO 9001 certified.

How do I make a payment?

Support T/T (Telegraphic Transfer), L/C (Letter of Credit), 30% deposit, 70% final payment before shipment.
