30 years old factory,specialized in manufacturing optical drop cables and preconnectorized optical patch cords. one-stop supplier for FTTH solutions.
1 Years
| Ask Lasest Price | |
| Brand Name : | Huaxin or OEM |
| Model Number : | Outdoor Fiber Optic Cable GYFTY53 |
| Certification : | CE,TLC,ISO9001 |
| Price : | $0.5/m |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 500km PER DAY |
| Delivery Time : | 7-14work days |

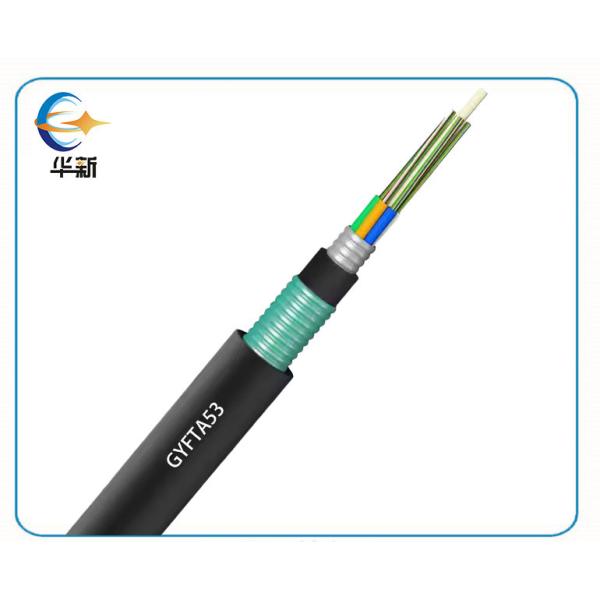

Underground direct buried armored GYFTA53 fiber optic cable Outdoor Armored Cable GYFTA53 for Direct Burial

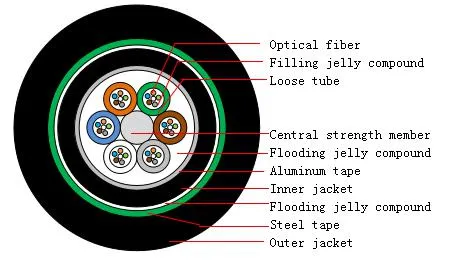

GYFTA53 (Loose tube stranding, Non-metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive inner jacket, Steel-polyethylene adhesive outer jacket)
Standards:
YD/T 901-2009 Outdoor layer stranded optical cable for
telecommunications
Technical Parameters(Typical Value):
| Fiber Count | Structure | Diameter (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic | |||
| 48 | 1+6 | 13.8 | 198 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
| Applications: The kind of optical cable is suitable for buried installation. Characteristics: Excellent water-blocking performance; Excellent resistance to lateral pressure, and mechanical and temperature performance. Operating Temperature:-40ºC~+70ºC Transmission Performance | Note: Other types of fiber can be provided according to the customer's demands. | ||||||||
| Item | 62.5μm(OM1) 850nm/1300nm | 50μm(OM2) 850nm/1300nm | G. 652 1310nm/1550nm | G. 655 1550nm/1625nm | |||||
| Attenuation Of Maximum Value(dB/km) | 3.5/1. 5 | 3.5/1. 5 | 0. 36/0. 22 | 0. 22/0. 26 | |||||
| Attenuation Of Typical Value(dB/km) | 3.5/1. 5 | 3.0/1. 0 | 0. 35/0. 21 | 0. 21/0. 24 | |||||
Packing and Transportation
Cable in stock, ship same day.
1 or 2km for a wooden roll.
One roll packed with carton.
Other length is also avaiable without MOQ.
|
|
