30 years old factory,specialized in manufacturing optical drop cables and preconnectorized optical patch cords. one-stop supplier for FTTH solutions.
1 Years
| Ask Lasest Price | |
| Brand Name : | Huaxin or OEM |
| Model Number : | Outdoor Fiber Optic Cable GYTC8A |
| Certification : | CE,TLC,ISO9001 |
| Price : | $0.2/m |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 500km PER DAY |
| Delivery Time : | 7-14work days |

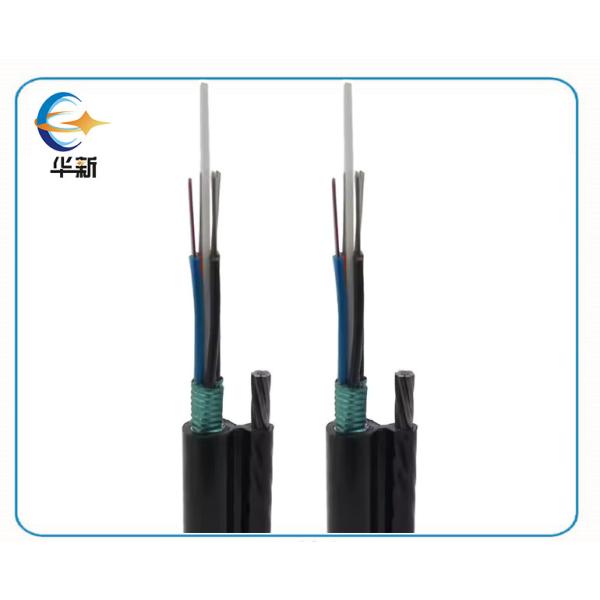

GYTC8A FTTH Self-Support Aerial Optical Fiber Cable Outdoor Fiber Optic Armoured Cable Steel Wire Self Sustainment Black
GYXTC8A the fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath.
| MFD(1310nm) | 9.2mm±0.4mm |
| MFD(1550nm) | 10.4mm±0.8mm |
| Cladding diameter | 125mm±1.0mm |
| Fiber diameter | 250 ± 15 mm (Colored) |
| Cladding non circularity | £1.0% |
| Cut off wavelength | £1260nm |
| Attenuation coefficient | 1310nm: £0.35dB/km |
| 1550nm: £0.215dB/km | |
| Bending-loss performance of optical fiber | £0.05dB |
| Polarization mode dispersion | £0.1ps/Ökm |
| Zero-dispersion wavelength | 1300 - 1324 nm |
| Zero-dispersion slope | £0.092ps/(nm2•km) |
| Tensile strength | 2850N, conform to IEC 794-1-E1 while fiber strain is ≤0.33% |
| Crush | 2200N/100mm, conform to IEC 794-1-E3 |
| Impact | conform to IEC 794-1-E4 |
| Repeated bending | conform to IEC 794-1-E6 |
| Temperature cycling test | conform to IEC 794-1-F1 |
Each fiber will be identifiable throughout the length of the cable in accordance with the following color sequence. Fiber color in each tube starts from No. 1 Blue.
| Fiber color code | 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Slate | White | |
| 7 | 8 | 9 | 10 | 11 | 12 | |
| Red | Black | Yellow | Violet | Rose | Aqua |
The loose tubes will be identifiable in accordance with the following color sequence, and each tube with 12 fibers. If there are fillers, the color is natural.
| Fiber color code | 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Slate | White | |
| 7 | 8 | 9 | 10 | 11 | 12 | |
| Red | Black | Yellow | Violet | Rose | Aqua |
Packing and Transportation
Cable in stock, ship same day.
1 or 2km for a wooden roll.
One roll packed with carton.
Other length is also avaiable without MOQ.
|
|
