30 years old factory,specialized in manufacturing optical drop cables and preconnectorized optical patch cords. one-stop supplier for FTTH solutions.
1 Years
| Ask Lasest Price | |
| Brand Name : | HUAXIN or OEM |
| Model Number : | FTTH Drop Cable |
| Certification : | ISO9001 |
| Price : | 20 |
| Payment Terms : | L/C,D/A,D/P,T/T |
| Supply Ability : | 3000km per day |
| Delivery Time : | 7-20 work days |
Excellent Quality Outdoor Communication Cable Self Supporting Aerial Fiber Optic Cable 1 2 4 Core FTTH Drop
Fiber drop cables are the lifeline of FTTH networks, empowering us to experience the reliable fiber optic connections. A drop cable typically consists of a protective layer and one or more jackets, providing necessary protection and durability.
Technical Data
| Fiber Count | 1F | 2F/4F | 6F-12F |
| Strength member | FRP/KFRP/ Solid Steel wire | ||
| 0.45-0.52mm | 0.45-0.52mm | 0.45-0.52mm | |
| Cable diameter(mm) Approx. | 2.0(±0.1)*3.0(±0.2) | 2.0(±0.1)*3.0(±0.2) | 2.0(±0.1)*4.0(±0.2) |
| Cable weight(kg/km) Approx | 7/10 | 7.5/10.5 | 8.5/11.5 |
| Tensile Strength Short/ Long Term (N) | 200/100 for steel wire strength member 80/40 for KFRP wire strength member | ||
| Crush resistance short/long term (N/100mm) | 1000/500 | ||
| Operating temperature range(°C) | -40°C ~+70°C | ||

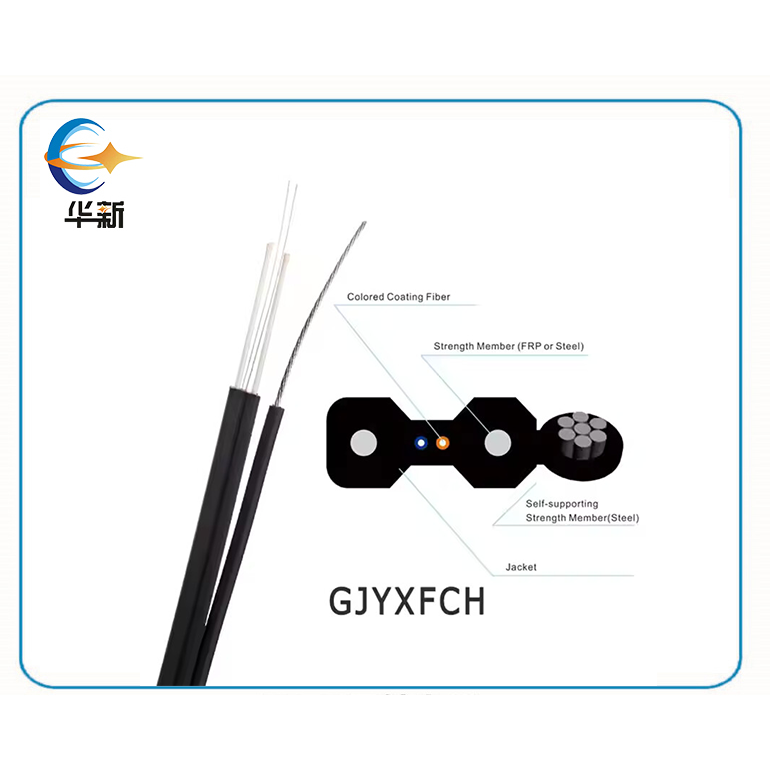

Cable structure
Company Profile
Factory environment
Certification standards
Packing and Transportation
FAQ
Q1. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and
check quality. Mixed samples are acceptable.
Q2. What about the MOQ?
A: Most products have a minimum order quantity, but some stocks can
accept small orders.
Q3: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or
faster(weekends not included), however, a few of days would be
taken for special ones.
Q4: How long is the guarantee of the product?
A: According to the type of product,We offer 1-3 years warranty to
our formal products.
Q5: What about delivery time?
A: We need 1-3 days to handling the sample, and 5-15 days to
process our normal goods.
Q6:How about the cable's quality ?
A: We guarantee that our products are ISO9001 standard compliant.
We have a series of professional equipment and manufacturing
instruments to make sure reliable quality of our products.
Q7: How do l assure that you are a reliable supplier?
A: Our factory has dug in this industry for many years and sold to
many countries in the world. If you are willing to verify that
through the phone or video, you are welcome at any time.
Q8: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ
Depends on different items, each item has its own minimum quantity.
Your satisfaction is our maximum motivation
|
|
